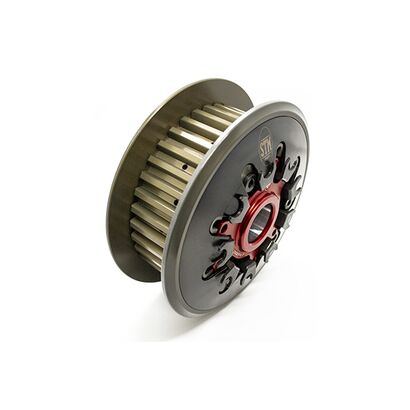

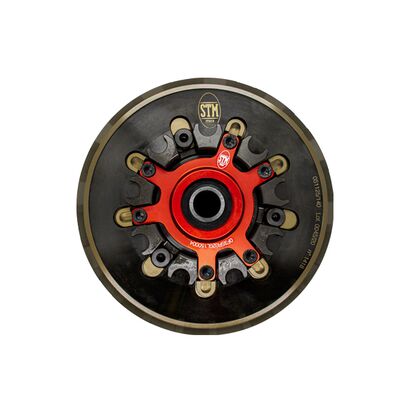

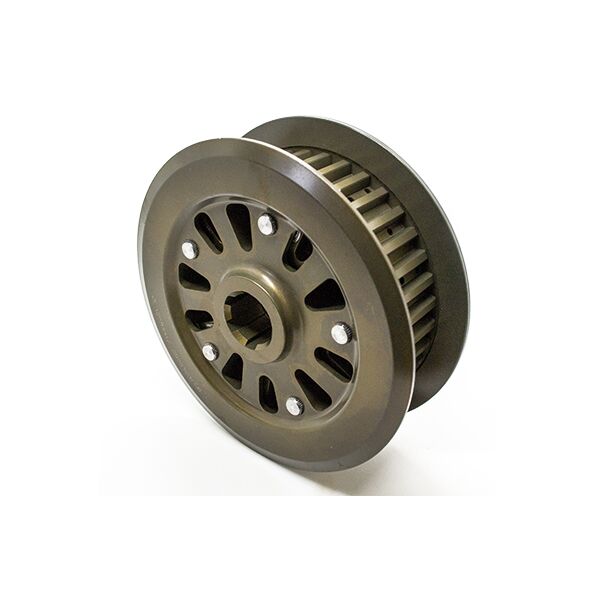

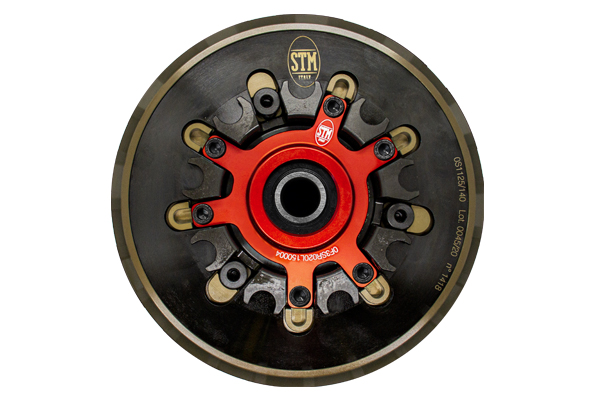

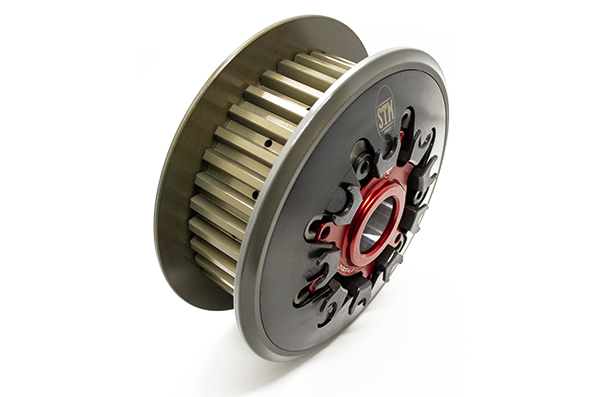

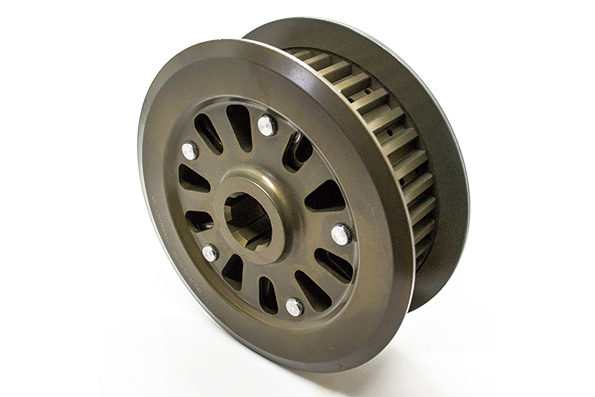

STM Aprilia RSV4 Tuono V4 Wet Slipper Clutch (2009 & Up)

  $1,138.80
FAP-S040

Wet slipper clutch Comes with all necessary hardware for installation Professional installation recommended Made in Italy The hearth of STM slipper clutch Primary spring: it makes...

10 days
Price in points: 5694 points
Reward points: 57 points
In stock
In stock
Add to wish list
Add to wish list

This is a new brand and we are slowly building up our inventory. Expect 10-14 days for delivery.

  • Wet slipper clutch
  • Comes with all necessary hardware for installation
  • Professional installation recommended
  • Made in Italy

The hearth of STM slipper clutch

Primary spring:

  • it makes pressure on the disc pack through the pressure plate;
  • it replaces the helicoidal springs

Secondary spring:

  • it makes pressure on the drum;
  • it regulates the opening of the slipper clutch and regulates the engine brake

Spring functioning:

The primary and secondary springs are pre-loaded in order to generate an initial elastic strength of contrast

Primary spring functioning:

When you operate clutch lever, the primary spring is compressed.The spring releases an elastic strength of contrast to the lever movement.The next chart shows how the spring load varies with its compression.

Secondary spring functioning:

The engine brake makes the drum rotate and shift out wards causing the discs to disengage. The secondary spring is compressed in comparison with the initial resting position and generates an elastic strength of contrast.

Brands:
STM

Instructions (FDU-S070_PANIGALE_959_ENG.pdf, 2,398 Kb) [Download]
