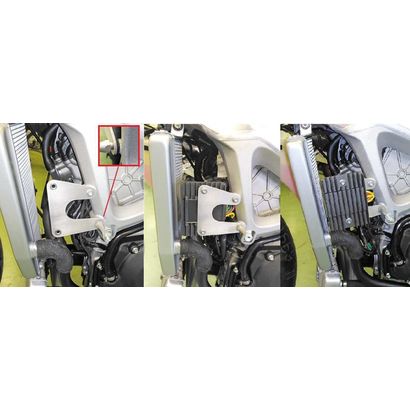

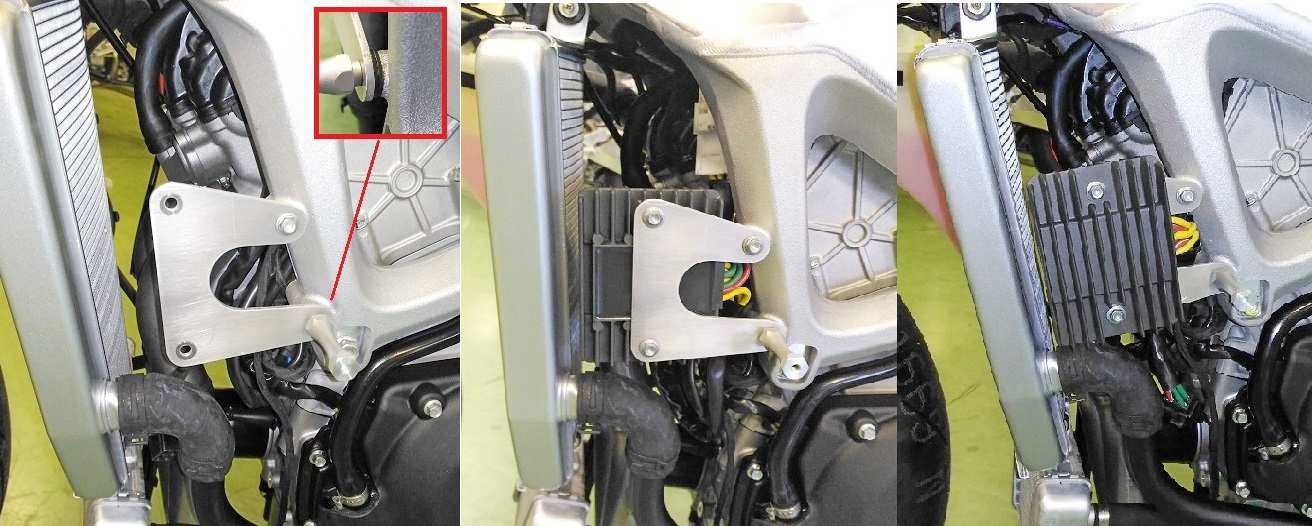

By using the Aprilia Racing regulator support, code COT170449, the voltage regulator may be mounted on the frame, on the left side of the bike. This plate, specifically created for racetrack use, allows you to permanently fix the regulator in place. Besides the plate, you will need a thickness of 3 mm, or two washers with holes for a 6 millimetre screw, between the frame and the plate in the lower attachment. The two bands that the plate is attached to on the frame are of different heights, which is why you need something to fill the empty space so that the two attachments line up with the plate (see the red square in the photo). After having mounted the plate to the frame, using an M6 screw for the upper attachment and the original fairing attachment for the lower one, you can mount the voltage regulator to the support plate. The regulator may be fixed on the inside or outside, depending on your preference (see photo). Next, connect all of the regulator cables to the main wiring harness, to the engine and fix the cables in place securely with some clamps.
NOTE: This operation is only possible if the petrol vapour recovery system has been removed
